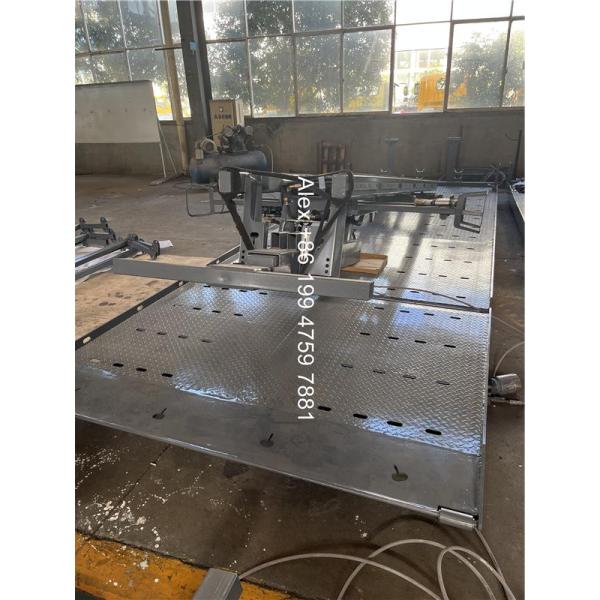

11000 Lb 23ft Rollback Truck Bed Wrecker Deck Slide Bed Tilt Tray Tow Body

Product Categories
Hubei iTruck Import and Export Trading Co., Ltd
Contact Now

11000 Lb 23ft Rollback Truck Bed Wrecker Deck Slide Bed Tilt Tray Tow Body

Brand Name : iTruck

Place of Origin : Hubei, China

MOQ : 1

Price : $6,600.00/units

Supply Ability : 30 sets per month

Delivery Time : 15 days

Packaging Details : Nude, covered with film protection

Product name : Rollback Truck Bed

Dimensions (L x W x H) (mm) : Customs made

Condition : New

WheelBase : As required

Subframe : Equipped

Main Winch : 5 tons

Underlift : 2 sections, 5 tons

Underlift Tow Rating : 10 Tons

Operation : Both sides manual

Remote Control : Optional

Warranty : 1 Year

Contact Now

11,000 LB 23FT FLATBED WRECKER DECK SLIDE BED TILT TRAY TOW BODY
Product Description

The rallback / slide and tilt truck bed / wrecker bed is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.


Main Features
1. Bed Length 6-7 m. Capacity 5 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.

Specs
5 Tons Slide Type Tilt Tray
General Settings Color

Customizable, electrophoresis

painting is optional
  Winch Capacity 5 tons
  Lift Capacity 5 tons
  Extension Capacity 5 tons
  Underlift Capacity 5 tons (tow up to 10 tons)
  Platform Material Q235R, 5mm thick
  Platform Type Checkered
  Platform Dimension

Around 6500 x 2500 mm

(dimension customizable)
  Wireless Remote Control Optional, extra USD500
  Subframe with Underlift Match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
  Sides Lights 8 pcs
  Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
  Bed Lift Cylinder with Seat 2 pcs
  Underlift lift Cylinder 2 pcs
  Underlift Extension Cylinder 1 pcs
  Hydraulic Winch 1 pcs
  Hydraulic Pump 1 pcs
  Hydraulic Multi Way Valve 1 pcs
  Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
  Hydraulic Hose 1 set
  Hydraulic Hose Containment 1 set
  Hose Sleeve 1 pcs
  Manual Control with Stainless Steel Seat 2 sets (on both sides)
  Oil Tank 1 pcs
Accessories Wheel Dollies 2 pcs
  Straps 4 pcs
  Toolbox 2 pcs
  Wheel Grids 2 pcs
  L arms 2 pcs
  Fence 2 pcs
  Mudflap 2 pcs
  Lamp Frame 1 pcs
  Bed Position Limit 1 set
  Frame and Lights Bolts 1 set
  Tool Box and Fence Brackets Square Tube 1 set



11000 Lb 23ft Rollback Truck Bed Wrecker Deck Slide Bed Tilt Tray Tow Body
